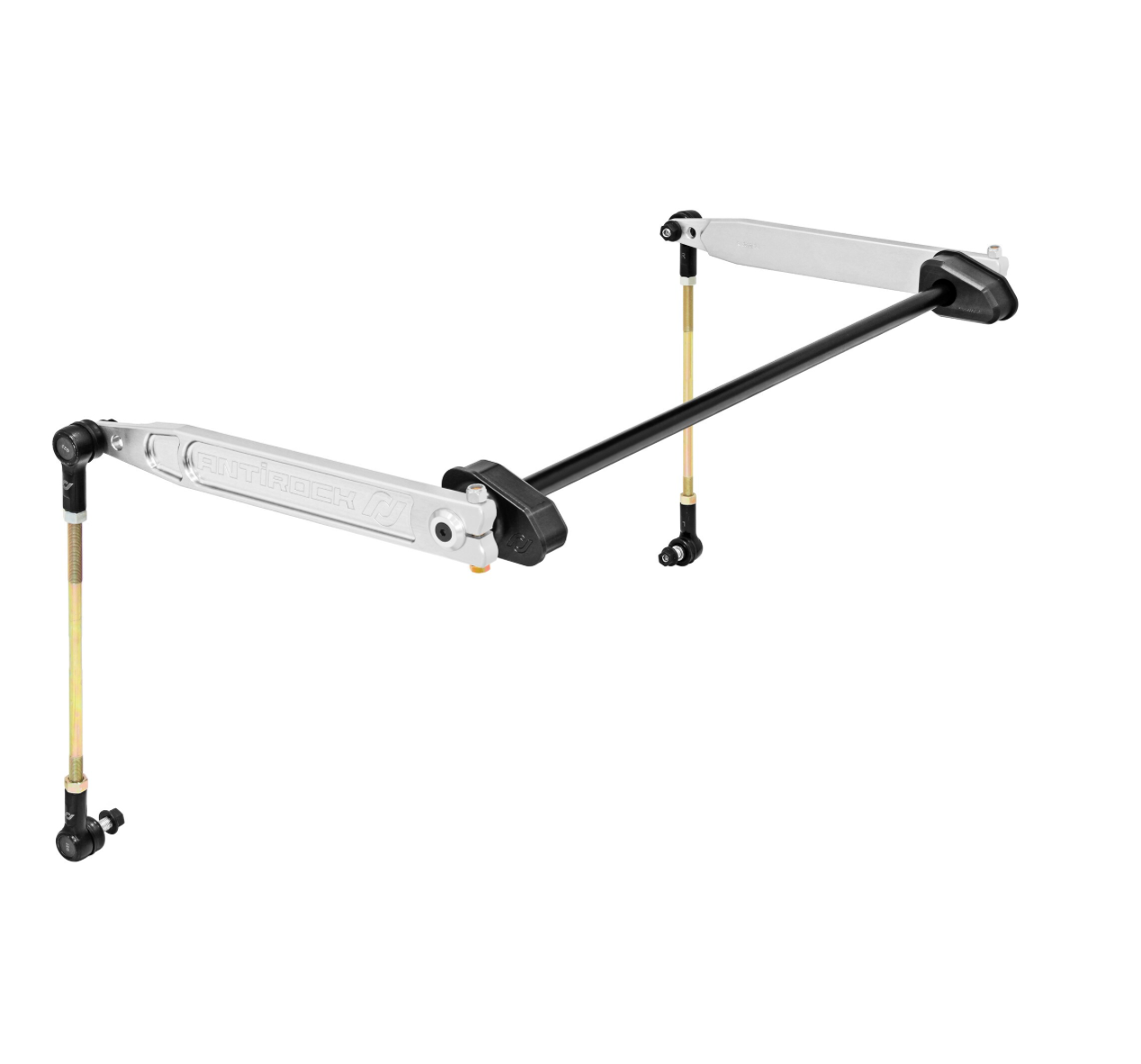

ROCK JOCK | JL ANTIROCK REAR SWAY BAR KIT (BILLET 7075 ALUMINUM ARMS, .850 IN. BAR) - 246201-101

RockJock’s Antirock Sway Bar Kit for the rear of all JL Wrangler and Unlimited vehicles helps free up suspension articulation to increase off-road traction. The Antirock sway bar easily bolts on with hand tools and is designed to directly replace the vehicle’s stock rear sway bar. The Antirock does not require disconnecting for off-road use!
The sway bar is made of 4130 heat treated chromoly for ultimate strength, which is the same quality used in professional off-road competition sway bars.
This specific kit features our fully CNC machined billet 7075 aluminum sway bar arms and billet aluminum frame brackets for the ultimate in high-end appearance!

Kit Fits:

• JL Wrangler Unlimited (4-door) – All Models
• JL Wrangler (2-door) – All Models

Kit Includes:

• Sway Bar Torsion Bar (.850 in. diameter)
• Billet UHMW Frame Bushings
• Billet 7075 Aluminum Sway Bar Arms
• Adjustable sway bar end links w/ sealed ends
• All Required Hardware

Notes:

• Body Roll - Antirock sway bar equipped vehicles will exhibit more body roll than vehicles equipped with the stock sway bar. Antirock sway bars may be used on the street, however, they do not provide the same handling characteristics as the stock sway bar.
• Overlanding - If you are an overlander and will be loading your vehicle down with weight above door handle level (bed racks, roof tents, etc.), our RJ-246200-101 kit with the heavy, 1 1/8 in. diameter bar will most likely be more appropriate for your application.
• End Links - Out of the box, the length of the sway bar’s vertical links that are included in this kit are intended for use with our suspension systems (3.5 in. lift). Depending upon your specific vehicle’s lift, you may obtain shorter or longer links to suit, here. Additionally, all of the link rods may also be trimmed in length for fine tuning purposes.
• Fitment - It is quite common for factory frames to vary in width. If you find your vehicle's frame to be on the narrower side, the Antirock arms can simply be slid on until they are snug against the Antirock bushings and then the arms clamped down. However, on some frames the arms absolutely have to hold true width to clear bolt heads on the side of the frame, etc. In instances of this nature, see our CE-9901D-SP4 shim pack to assist in fine tuning.

Parts List:

• Sway Bar Torsion Bar:  RJ-204002-1
• Billet UHMW Frame Bushing:  CE-9900JLRL
• Billet UHMW Frame Bushing:  CE-9900JLRR
• Billet Aluminum Sway Bar Arms:  RJ-202012-101
• Adjustable Sway Bar End Links:  RJ-203002-101
• Sway Bar Arm Hardware Pack:  CE-99005A
